Utiliser ou télécharger la dernière version de l'IDE Arduino

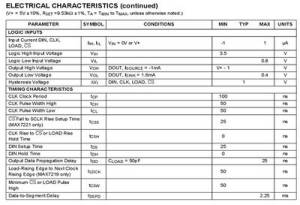

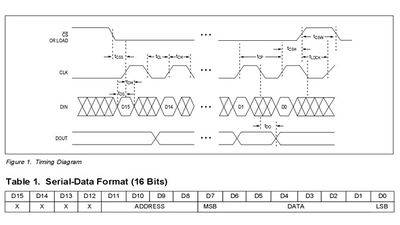

Le diagramme de synchronisation pour Max7219 et son format de données série sont joints ci-dessous avec ses caractéristiques électroniques.
unsigned char i; unsigned char j; /*Port Definitions*/ int Max7219_pinCLK = 10; int Max7219_pinCS = 9; int Max7219_pinDIN = 8; unsigned char disp1[38][8]={ {0x3C,0x42,0x42,0x42,0x42,0x42,0x42,0x3C},//0 {0x10,0x18,0x14,0x10,0x10,0x10,0x10,0x10},//1 {0x7E,0x2,0x2,0x7E,0x40,0x40,0x40,0x7E},//2 {0x3E,0x2,0x2,0x3E,0x2,0x2,0x3E,0x0},//3 {0x8,0x18,0x28,0x48,0xFE,0x8,0x8,0x8},//4 {0x3C,0x20,0x20,0x3C,0x4,0x4,0x3C,0x0},//5 {0x3C,0x20,0x20,0x3C,0x24,0x24,0x3C,0x0},//6 {0x3E,0x22,0x4,0x8,0x8,0x8,0x8,0x8},//7 {0x0,0x3E,0x22,0x22,0x3E,0x22,0x22,0x3E},//8 {0x3E,0x22,0x22,0x3E,0x2,0x2,0x2,0x3E},//9 {0x8,0x14,0x22,0x3E,0x22,0x22,0x22,0x22},//A {0x3C,0x22,0x22,0x3E,0x22,0x22,0x3C,0x0},//B {0x3C,0x40,0x40,0x40,0x40,0x40,0x3C,0x0},//C {0x7C,0x42,0x42,0x42,0x42,0x42,0x7C,0x0},//D {0x7C,0x40,0x40,0x7C,0x40,0x40,0x40,0x7C},//E {0x7C,0x40,0x40,0x7C,0x40,0x40,0x40,0x40},//F {0x3C,0x40,0x40,0x40,0x40,0x44,0x44,0x3C},//G {0x44,0x44,0x44,0x7C,0x44,0x44,0x44,0x44},//H {0x7C,0x10,0x10,0x10,0x10,0x10,0x10,0x7C},//I {0x3C,0x8,0x8,0x8,0x8,0x8,0x48,0x30},//J {0x0,0x24,0x28,0x30,0x20,0x30,0x28,0x24},//K {0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x7C},//L {0x81,0xC3,0xA5,0x99,0x81,0x81,0x81,0x81},//M {0x0,0x42,0x62,0x52,0x4A,0x46,0x42,0x0},//N {0x3C,0x42,0x42,0x42,0x42,0x42,0x42,0x3C},//O {0x3C,0x22,0x22,0x22,0x3C,0x20,0x20,0x20},//P {0x1C,0x22,0x22,0x22,0x22,0x26,0x22,0x1D},//Q {0x3C,0x22,0x22,0x22,0x3C,0x24,0x22,0x21},//R {0x0,0x1E,0x20,0x20,0x3E,0x2,0x2,0x3C},//S {0x0,0x3E,0x8,0x8,0x8,0x8,0x8,0x8},//T {0x42,0x42,0x42,0x42,0x42,0x42,0x22,0x1C},//U {0x42,0x42,0x42,0x42,0x42,0x42,0x24,0x18},//V {0x0,0x49,0x49,0x49,0x49,0x2A,0x1C,0x0},//W {0x0,0x41,0x22,0x14,0x8,0x14,0x22,0x41},//X {0x41,0x22,0x14,0x8,0x8,0x8,0x8,0x8},//Y {0x0,0x7F,0x2,0x4,0x8,0x10,0x20,0x7F},//Z }; void Write_Max7219_byte(unsigned char DATA) { unsigned char i; digitalWrite(Max7219_pinCS,LOW); for(i=8;i>=1;i--) { digitalWrite(Max7219_pinCLK,LOW); digitalWrite(Max7219_pinDIN,DATA&0x80);// Extracting a bit data DATA = DATA<<1; digitalWrite(Max7219_pinCLK,HIGH); } } void Write_Max7219(unsigned char address,unsigned char dat) { digitalWrite(Max7219_pinCS,LOW); Write_Max7219_byte(address); //address,code of LED Write_Max7219_byte(dat); //data,figure on LED digitalWrite(Max7219_pinCS,HIGH); } void Init_MAX7219(void) { Write_Max7219(0x09, 0x00); //decoding :BCD Write_Max7219(0x0a, 0x03); //brightness Write_Max7219(0x0b, 0x07); //scanlimit;8 LEDs Write_Max7219(0x0c, 0x01); //power-down mode:0,normal mode:1 Write_Max7219(0x0f, 0x00); //test display:1;EOT,display:0 } void setup() { pinMode(Max7219_pinCLK,OUTPUT); pinMode(Max7219_pinCS,OUTPUT); pinMode(Max7219_pinDIN,OUTPUT); delay(50); Init_MAX7219(); } void loop() { for(j=0;j<38;j++) { for(i=1;i<9;i++) Write_Max7219(i,disp1[j][i-1]); delay(500); } }
Différentes librairies à tester
Une librairie pour les matrices en cascade ( à essayer …)
Une autre librairie mais pour le Raspberry ( A voir lors d'une autre soirée …)
Envoyer par Fernand
Pour la création de caractères 8×8 sur la matrice de LEDs
Toujours envoyer par Fernand : un programme de test, ne pas oublier d'inclure les 2 librairies ci-dessous
